LithiumWerks AER18650m2A2 Lithium Ion Energy Cell
3.3 Volt, 1.8Ah, Lithium Iron Phosphate (LiFePO4) Battery
Specifications

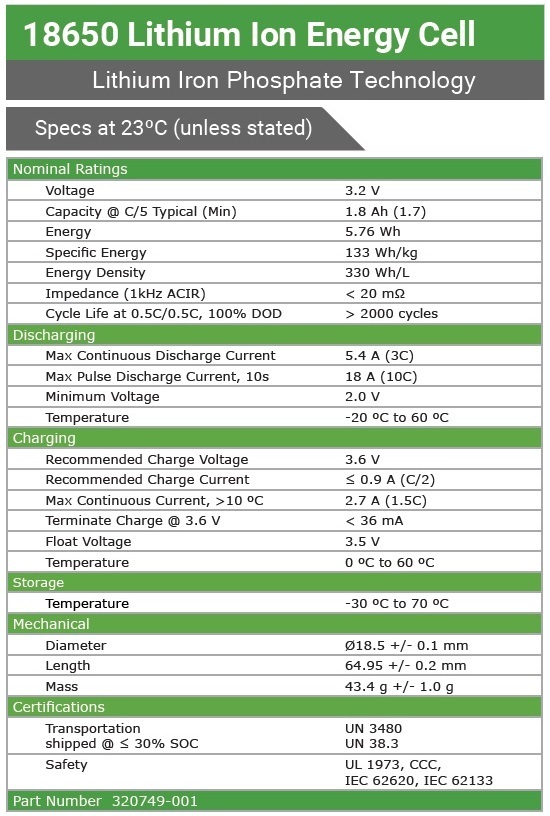

LithiumWerks AER18650m2A2 Specifications
| Manufacturers Part Number 320749-001 |
||
| Nominal Ratings | ||
| Voltage | 3.2 V | |
| Capacity @ C/5 Typical (Min) | 1.8 Ah (1.7) | |
| Energy | 5.76 Wh | |
| Specific Energy | 133 Wh/kg | |
| Energy Density | 330 Wh/L | |
| Impedance (1kHz ACIR) | < 20 mΩ | |
| Cycle Life at 0.5C/0.5C, 100% DOD | > 4000 cycles | |
| Discharging | ||
| Max Continuous Discharge Current | 5.4 A (3C) | |
| Max Pulse Discharge Current, 10s | 18 A (10C) | |
| Minimum Voltage | 2.0 V | |
| Temperature | -20 ºC to 60 ºC | |
| Charging | ||
| Recommended Charge Voltage | 3.6 V | |
| Recommended Charge Current | ≤ 0.9 A (C/2) | |
| Max Continuous Current, >10 ºC | 2.7 A (1.5C) | |
| Terminate Charge @ 3.6 V | < 36 mA | |
| Float Voltage | 3.5 V | |
| Temperature | 0 ºC to 60 ºC | |
| Storage | ||
| Temperature | -30 ºC to 70 ºC | |
| Mechanical | ||
| Diameter | Ø18.5 +/- 0.1 mm | |
| Length | 64.95 +/- 0.2 mm | |
| Mass | 43.4 g +/- 1.0 g | |
| Certifications | ||
| Transportation shipped @ ≤ 30% SOC | UN 3480, UN 38.3 | |
| Safety | UL 1973, IEC 62620 *pending early 2024 |
|
For Volume Pricing email us at sales@stortronics.com or call us today at 248-912-1200.
Click Here to download the LithiumWerks AER18650m2A2 specification sheet
Click Here to download the LithiumWerks - Charging Recomendation Document
